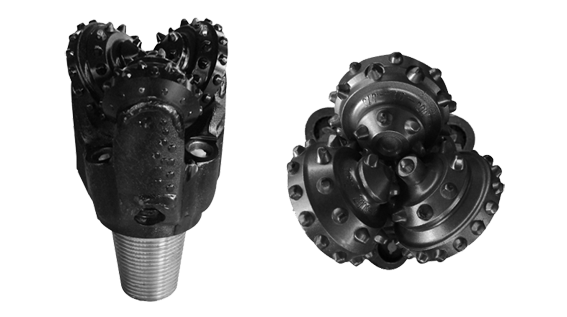

You are here: Products > Tricon Bits > TCI > 6 LS417G
| Product Specification | |
| Type specification（inch）： | 6 |
| Type specification（mm）： | 152.4mm |
| IADC： | 417 |
| Additional features： | G |
| Formation： | Soft Formation of Low Crushing Resistance and High Drillability |
| Drilling condition： | rotary drilling、high temp.drilling、deep drilling、motor drilling |
| Bearing Type： | journal bearing |
| Total teeth count： | 77 |
| Gage row teeth count： | 41 |
| Number of gage rows： | 3 |
| Number of inner rows： | 6 |
| Journal angle： | 33° |
| Offset： | 4.8 |
| API connection(REG pin)： | 3 1/2 |
| Weight on bit(KN)： | 53-137 |
| Rotary speed(Rpm)： | 300-60 |
| Recommened upper torqueKN.M： | 9.5-12.2 |
