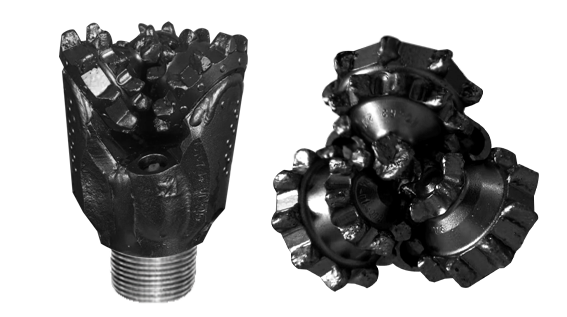

Certification System You are here: Products > Tricon Bits > MT > 6 1/8LS117G
| Product Specification | |
| Type specification（inch）： | 6 1/8 |
| Type specification（mm）： | 155.6mm |
| IADC： | 117 |
| Additional features： | G |
| Formation： | Soft Formation of Low Crushing Resistance and High Drillability |
| Drilling condition： | rotary drilling、high temp.drilling、deep drilling、motor drilling |
| Bearing Type： | journal bearing |
| Total teeth count： | 57 |
| Gage row teeth count： | 30 |
| Number of gage rows： | 3 |
| Number of inner rows： | 4 |
| Journal angle： | 33° |
| Offset： | 5.5 |
| API connection(REG pin)： | 3 1/2 |
| Weight on bit(KN)： | 55-140 |
| Rotary speed(Rpm)： | 300-60 |
| Recommened upper torqueKN.M： | 9.5-12.2 |
